Historical Redirect Chain Forensics: Tracing the DNA of Your Site’s SEO Legacy

Map your site’s redirect chains by crawling with Screaming Frog or Sitebulb, filtering for 301/302 status codes, then exporting the full redirect path for each URL. Anything longer than three hops is leaking link equity and adding 200-500ms of latency per hop. Trace ownership changes and platform migrations by examining redirect timestamps in server logs or the Wayback Machine, sudden clusters of redirects often mark acquisitions or CMS swaps that introduced technical debt. Audit your most valuable backlinks next: pull referring domains from Ahrefs or Majestic, check which land on redirect chains rather than final destinations, and consolidate by updating the first redirect to point directly to the final URL. You’ll reclaim equity, improve crawl efficiency, and eliminate the archaeological layers that slow both bots and users.

What Redirect Chains Reveal About Your Site’s Past

Think of redirect chains like geological strata. Each layer records a distinct moment in your site’s evolution. When example.com redirects to www.example.com, which redirects to example.com/home, which finally lands at example.com, you’re looking at evidence of past decisions: an early www preference, a misguided homepage structure (someone’s idea of a “landing experience” that didn’t stick), then a consolidation effort.

These chains reveal platform migrations (WordPress to headless CMS), domain consolidations (brand acquisition mergers), HTTPS transitions handled poorly, and abandoned subdomain strategies. In my experience, a five-hop chain almost always signals multiple owners, rushed replatforming, or accumulated technical debt from teams who never audited their predecessors’ work. Sometimes all three at once.

Why it matters for site health: each redirect adds latency, dilutes link equity investments, and creates failure points. The HTTP status codes themselves are documented in RFC 7231 (HTTP/1.1 redirect semantics), but how search engines interpret them is policy, not protocol. And policy says crawlers follow chains but discount value with each hop. Users on slow connections may abandon before resolution. More importantly, these chains expose architectural assumptions your current team inherited but never questioned. Redirect rules masking broken internal linking, domain authority scattered across variants, or mobile URLs still routing through deprecated paths (the kind of thing you only find when you go looking for it).

Forensic analysis means tracing each redirect to its origin decision, understanding the business context that created it, and evaluating whether that rationale still applies. Most chains exist because no one documented the original migration plan or assigned ownership to post-launch cleanup. In my experience, the chain matters more than any single hop in it. A two-hop chain with sensible reasons on each link is fine. A two-hop chain where the middle URL was a staging hostname someone forgot to take down (yes, this is common) is a problem regardless of the depth.

The Hidden Cost of Legacy Redirects

Legacy redirect chains carry measurable costs that accumulate over time. Each hop in the chain consumes crawl budget, the finite number of pages search engines will crawl during a visit, meaning new or updated content may go unindexed while bots chase old redirects. For large sites with thousands of legacy URLs, this waste compounds quickly. Faster than most teams realize, honestly.

Link equity dilution presents another penalty. While a single 301 redirect passes most ranking power, multi-hop chains progressively leak authority with each jump. Industry consensus (and Google’s own guidance) is that crawlers will follow several hops but discount the chain heavily after that, effectively orphaning equity that lives at the end of long redirect tails. The exact discount rate is anyone’s guess, but the trend is reliable. This becomes critical when evaluating domain migrations or cleaning up toxic links accumulated across ownership changes.

Page speed suffers measurably. Each redirect adds DNS lookups, TCP handshakes, and HTTP round trips, often 200 to 500 milliseconds per hop. MDN’s HTTP redirection reference walks through why each hop forces a fresh round trip, and mobile users on slower connections experience this friction most acutely, increasing bounce rates before content ever loads.

User experience friction compounds these technical penalties. Visitors clicking aged backlinks encounter loading delays and occasionally broken chains when intermediate domains expire or hosting changes interrupt the sequence. Analytics tools lose referrer data across domain boundaries, obscuring how users actually find your content.

Search engines interpret redirect chains as signals of site maintenance quality. Excessive chains suggest technical debt, potentially dampening algorithmic trust. When chains exceed five hops or span multiple domains, expect diminished indexing priority and equity loss regardless of your content quality.

Tools for Mapping Your Redirect History

Tracing redirect chains requires both server-side data and client-side simulation. Server access logs reveal the full journey browsers took through your redirects, showing timestamps, user agents, and status codes. Parse Apache or Nginx logs by filtering for 301, 302, and 307 responses, then export matched rows to a spreadsheet for pattern analysis.

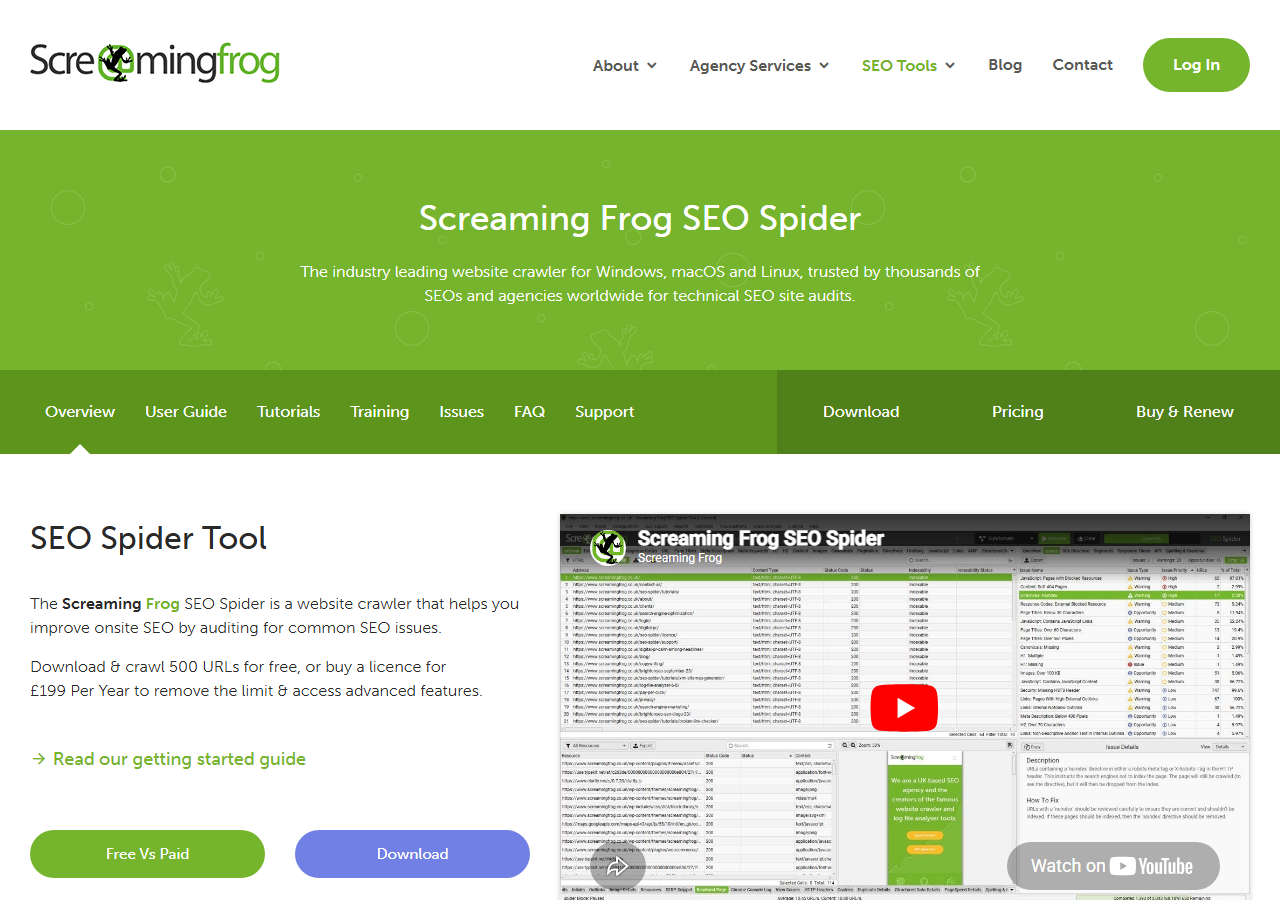

Screaming Frog crawls sites while preserving redirect chains, displaying each hop in the URL tree view. Configure it to follow redirects (Spider, Configuration, Limits, Max Redirects set to 10+), then export the “Redirect Chains” report showing source URL, intermediate steps, and final destination. Visualize complex paths by copying the chain data into a flow diagram tool like Mermaid or Graphviz, turns hundreds of redirects into scannable visual maps.

Server logs, crawler exports, and command-line spot checks

Custom redirect tracking scripts offer real-time monitoring. Deploy JavaScript that intercepts redirects, logs each hop to analytics, and flags chains exceeding three jumps, useful for ongoing audits rather than one-time investigations.

When collecting data, capture status codes, hop count, final destination, timestamp of last change, and any query parameters lost in transit. Cross-reference findings with historical Wayback Machine snapshots to confirm when redirects were implemented. Tools like curl -L with --trace-ascii output provide command-line alternatives for spot-checking individual URLs without installing desktop software.

Reading the Evidence: Common Redirect Patterns and What They Mean

Here’s the part where pattern recognition takes over. Six signals separate a chain that’s just history doing its job from one that’s actively bleeding equity. Read them together, not in isolation. One signal looking off in isolation rarely means much.

Migration Chains

Redirect chains accumulate when sites migrate platforms, rebrand domains, or absorb acquisitions without consolidating paths. Each hop, from legacy CMS to intermediate staging URLs to current infrastructure, adds latency, dilutes link equity, and creates forensic breadcrumbs revealing technical decisions made years ago. Crawling historical snapshots alongside current redirect maps exposes these multi-step journeys. Long chains often point to unfinished migrations where 301s were stacked rather than updated at the source.

Protocol and WWW Redirects

Sites often accumulate redirect layers when migrating HTTP to HTTPS or standardizing www versus non-www addresses. Each protocol switch and subdomain canonicalization creates a hop that dilutes link equity and slows user experience. Audit tools like Screaming Frog or curl reveal these stacked 301s, showing whether visitors hit HTTP to HTTPS to www or similar chains. Consolidating to a single redirect preserves ranking signals and reduces latency. Protocol and subdomain decisions from years ago still tax every pageview today.

URL Structure Evolution

URL paths often reveal past platform migrations, SEO rewrites, or structural pivots. A redirect from /blog/2015/03/product-launch/ to /products/launch-name/ signals a move from date-based to semantic architecture, important for understanding current link equity flow. Similarly, /index.php?id=42 evolving to /about/ marks a CMS upgrade. Track parameter stripping, subdomain consolidation, and category flattening to map how site owners prioritized crawl efficiency and user clarity over time. These patterns help you identify which redirects carry strategic intent versus hasty patches.

The Forensic Audit Workflow

The end-to-end audit fits in four steps. Probably fewer if you trust the data already in your crawler. Anything more complex than this and you’re optimizing the audit instead of the chains.

Run this in order. The temptation is to jump from Discover straight to Decide, but the Score step is what separates a clean cut from a regression. I’ve seen teams collapse a four-hop chain only to find one of the middle URLs was the canonical target of a 2,000-backlink PR placement from years prior. The chain looked redundant on the crawl report. It wasn’t. (And the rollback was not pleasant.)

Surgical Redirect Cleanup: When to Preserve vs. Consolidate

Once you’ve mapped your redirect chains, you face a critical decision: preserve the stack or collapse it. The answer depends on link equity flow, external backlink distribution, and site stability.

Collapse to direct 301s when chains exceed three hops, when intermediate URLs hold no external backlinks, or when redirect latency measurably impacts page speed. A four-hop chain wastes crawl budget and dilutes authority, redirect the earliest URL directly to the final destination. Before executing, verify no external links point to middle-hop URLs by checking backlink profiles in Ahrefs or Majestic for each intermediate address.

Preserve chains when intermediate URLs carry substantial referring domains. If a mid-chain URL has 50 quality backlinks, removing it breaks those inbound paths. Instead, redirect that URL directly to the final target while maintaining redirects from earlier hops to it. This hybrid approach maintains link equity while reducing unnecessary jumps.

Testing protocol: never deploy redirect changes during peak traffic. Export current redirect mappings from your server config or CDN rules. Implement changes in staging, then use curl -I or Screaming Frog to verify each redirect resolves correctly in one hop. Check HTTP status codes return 301 (not 302 or 307). Monitor server logs for 404 spikes immediately post-deployment, broken redirects surface fast.

For inherited acquisitions or post-migration sites, monitoring redirects prevents regression. Schedule quarterly audits to catch new chains before they compound. Document why specific redirects exist, future teams need context to avoid breaking historical paths that still drive traffic.

When uncertain, preserve first, optimize later. Removing a redirect is reversible. Recovering lost link equity is not.

When the Forensics Pay Off

Here’s the thing about redirect chain forensics. It isn’t a one-time spring cleaning project, it’s ongoing infrastructure maintenance that protects your link equity investments and user experience. Chains accumulate silently after site migrations, URL structure updates, and content reorganizations, compounding latency and signal loss over time. Quietly. Persistently.

Three immediate action items keep your redirect architecture healthy: schedule quarterly audits using crawl tools to catch new chains before they propagate, document every redirect you create with timestamp and business rationale, and maintain a living redirect map that traces historical URL evolution. This documentation becomes invaluable when debugging traffic drops or planning future migrations.

Clean redirect architecture functions like well-maintained plumbing, invisible when working correctly, costly when neglected. Regular forensic reviews ensure your site preserves hard-earned authority signals while delivering fast, direct paths to content for both users and search engines.
